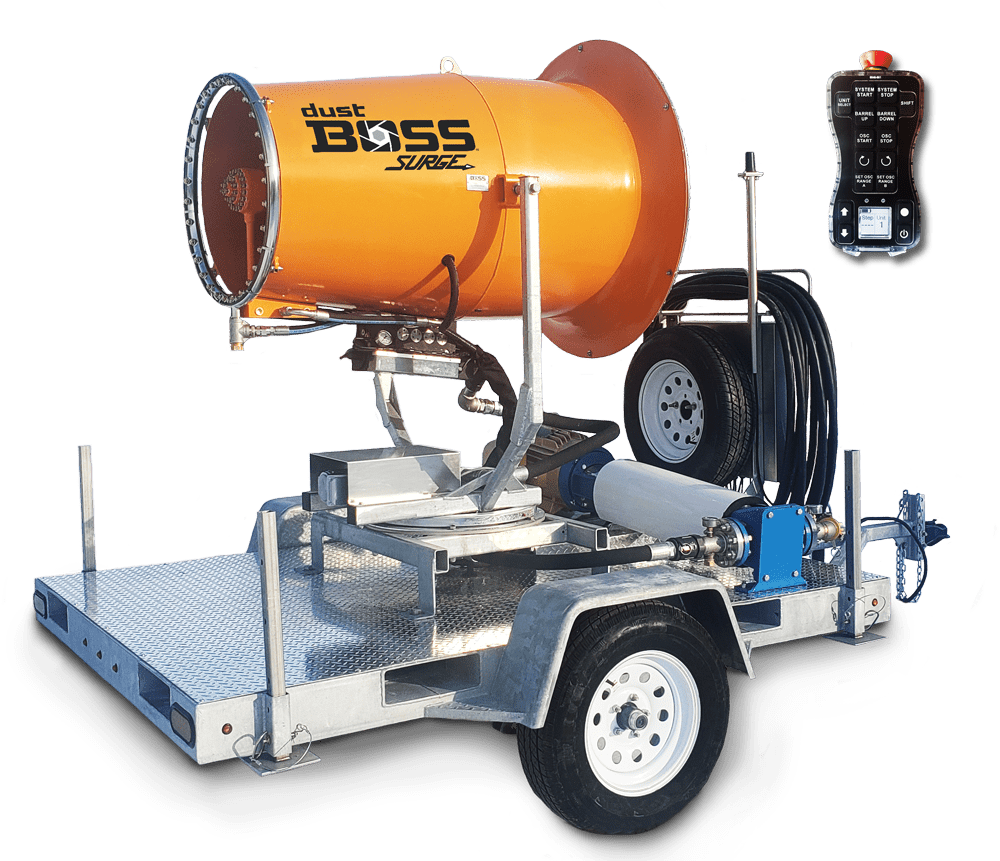

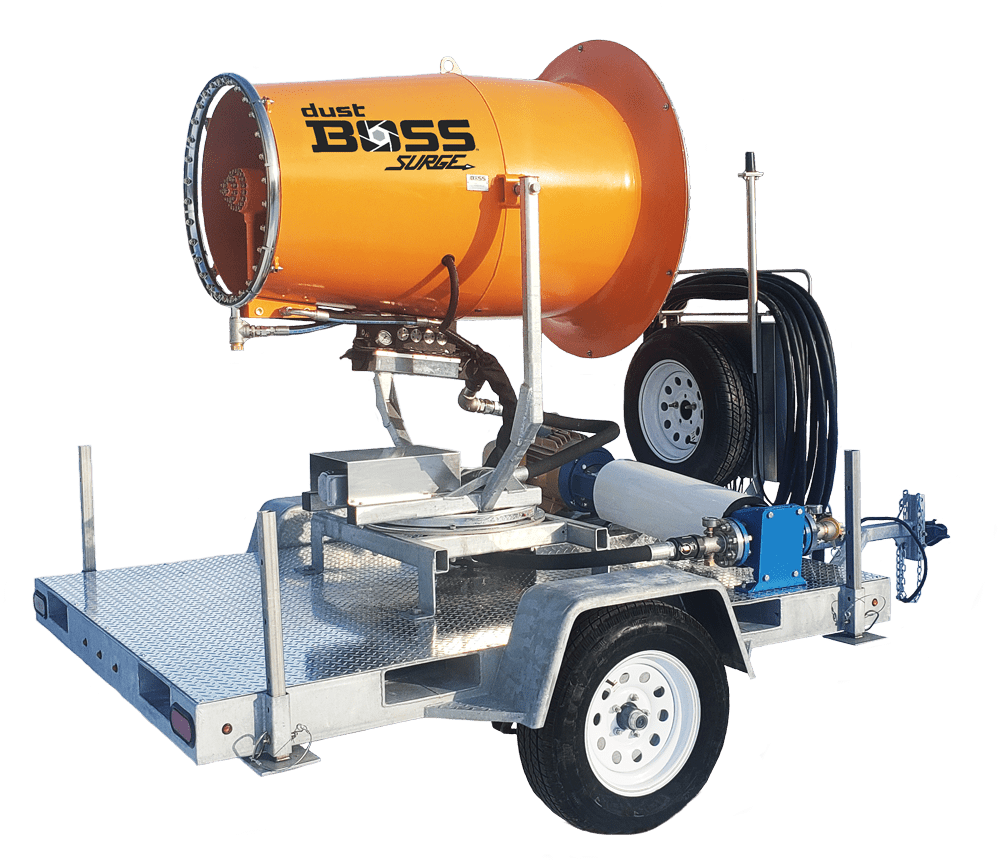

DUSTBOSS SURGE® CENTER NOZZLE

d

SURGE THROUGH TOUGH WINDS

The new DustBoss­® Surge® center nozzle applies high-powered jets of water to dust control. Combined with cutting-edge updates to the DustBoss system, Surge center nozzle technology provides a dust management solution designed to fight through the elements and reach high-rising dust.

With the ability to instantly change spray patterns from a jet stream to fog dispersion, the center nozzle stops dust at high locations and any attempting to migrate around and off-site.

This machine is designed with a multi-step system delivering versatile flow levels using the center nozzle and outer misting ring. Advanced controls allow custom oscillation ranges to be easily inputted with a few pushes of a button.

Specifications
  • Throw: 200 ft (60 m).
  • Standard 260° oscillation coverage: 90,757 sq ft (8,432 sq m).
  • 3-Stage Operation:
    • Stage 1: (Outer Spray Ring) 17-43 gpm.
    • Stage 2: (Center Nozzle) 30-75 gpm.
    • Stage 3: (Both Ring & Nozzle) 42-110 gpm.
  • Full system control via newly added remote.
  • Remote range: Operates within 1,000 ft of unit.
  • VFD for controlling throw performance at lower PSI.
  • Direct-drive motor.
  • Standard mount: Two wheeled trailer. Additional options available.
  • Warranty: 3 year / 3,000 hour.
Ask Us About

GET THE SPEC SHEET!

db-60-surge-jet-stream-at-demolition

FEATURES

Throw of 200 ft (60 m).

Instantly-changing center nozzle spray patterns.

260° oscillation with custom-set ranges.

DustBoss Surge Center Nozzle with outer ring plume

BENEFITS

Cut through tough winds.

Eliminate dust.

Protect workers and community.

db-60-surge-center-nozzle-and-misting-ring-at-demolition

OPTIONS

Non-potable water filters.

Quick Release Manifold for nozzle maintenance.

Skid and tower mounts.

DUSTBOSS® DB-60 SURGE® IN ACTION
