DB-60 SURGE® CENTER NOZZLE

d

SURGE THROUGH TOUGH WINDS

The new DustBoss­® Surge® center nozzle applies high-powered jets of water to dust control. Combined with cutting-edge updates to the DustBoss system, Surge center nozzle technology provides a dust management solution designed to fight through the elements and reach high-rising dust.

This machine is designed with a multi-step system delivering versatile flow levels using the center nozzle and outer misting ring. Advanced controls allow custom oscillation ranges to be easily inputted with a few pushes of a button.

Specifications
  • Throw: 250 ft (76 m).
  • Standard 359° oscillation coverage: 195,800 sq ft (18,190 sq m).
  • 5 step water usage:
    • Step 1: (Spray Manifold) 37 gpm.
    • Step 2: (Center Nozzle Inner Ring) 31 gpm.
    • Step 3: (Center Nozzle Inner 2 Rings) 53 gpm.
    • Step 4: (Center Nozzle All 3 Rings) 77 gpm.
    • Step 5: (All Center Nozzle Rings and Spray Manifold) 100 gpm.
  • Full system control via newly added remote.
  • Remote range: Operates within 1,000 ft of unit.
  • Direct-drive motor.
  • Standard mount: Two wheeled trailer. Additional options available.
  • Warranty: 3 year / 3,000 hour.
Ask Us About
  • Recommendations on using non-potable water.
  • Alternative mounts, including towers, skid and trailers.
  • Quick Release Manifold for easy nozzle maintenance.
DustBoss DB-60 Surge

GET THE SPEC SHEET!

dustboss-db-60-surge-features

FEATURES

Throw of 250 ft (76 m).

Center nozzle with 5 flow levels.

Custom-set oscillation ranges.

DustBoss DB-60 Surge Benefits

BENEFITS

Cut through tough winds.

Eliminate dust.

Protect workers and community.

dustboss-db-60-surge-options

OPTIONS

Non-potable water filters.

Variable frequency drive adjustable fan throw.

Quick Release Manifold for nozzle maintenance.

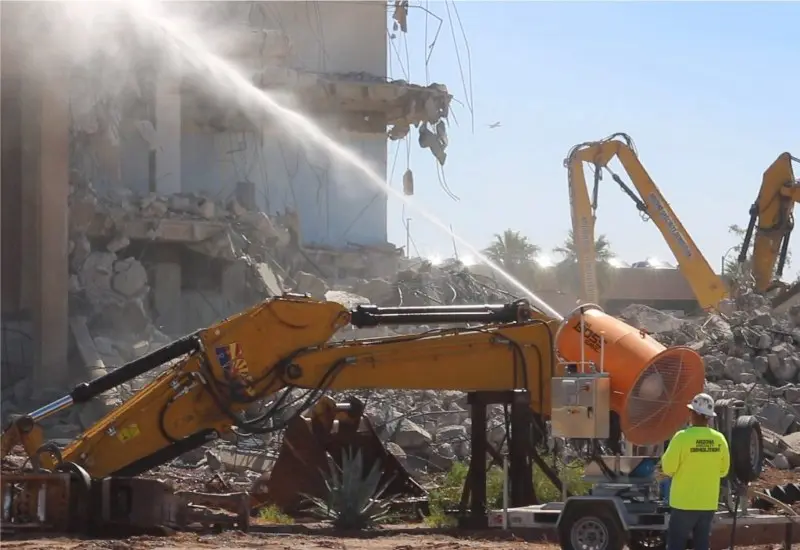

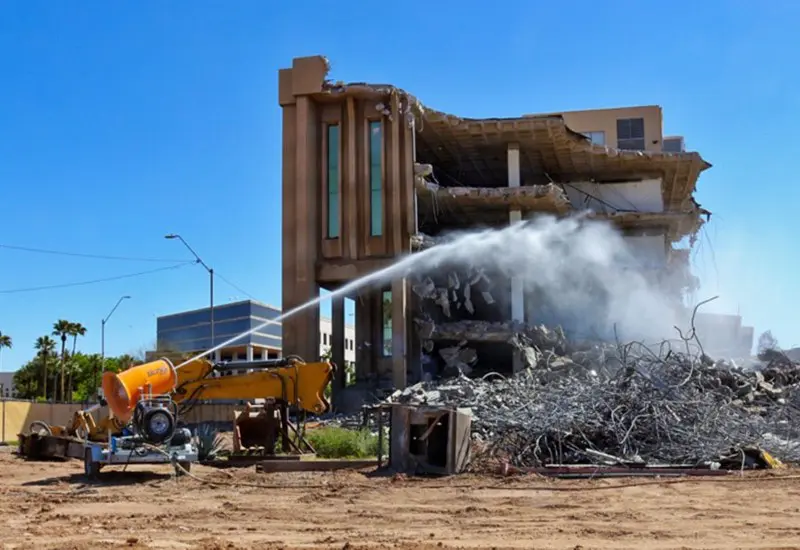

DUSTBOSS® DB-60 SURGE® IN ACTION
