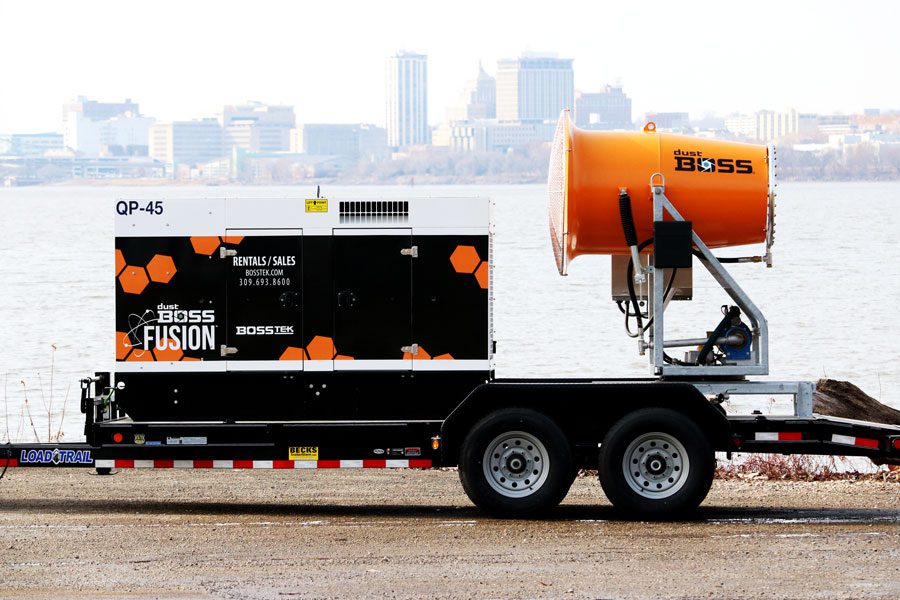

DUSTBOSS® DB‑60 FUSION™

d

STANDARD-SETTING DUST CONTROL CANNON WITH MOBILE GENSET

The durable DustBoss® DB-60 Fusion™ pairs the DB-60 mist cannon with a genset, perfect for any job without on-site power.

All mounted to a roadworthy trailer, the Fusion systems are ideal for quick positioning on-site or entire project relocation city-to-city.

  • Throw: 200 ft (60 m).
  • Standard 180° oscillation coverage: 62,800 sq ft (5,834 sq m).
  • Water usage: 12.0 gpm (45.4 lpm) to 26.7 gpm (101.1 lpm).
  • Power: 45 kW Kohler genset with Tier IV, diesel engine.
  • Fuel capacity: 100 gallons (~48 hours runtime).
  • Standard mount: Roadworthy trailer with pintle hitch.
  • Adjustable throw angle: 0° to 50°.
  • Direct-drive motor.
  • Touch screen controls.
  • Cannon warranty: 3 year / 3,000 hour.
  • Genset warranty: 2 year / 2,000 hour.
ASK US ABOUT

GET THE SPEC SHEET!

DustBoss DB-60 Dust Control Cannon Features

FEATURES

Throw of 200 ft (60 m).

Standard 180° oscillation.

45 kW Kohler genset with Tier IV, diesel engine.

dustboss-db-60-fusion-benefits

BENEFITS

Eliminate dust.

No-hassle power.

Protect workers and community.

dustboss-db-60-fusion-options

OPTIONS

Remote control with 1000 ft range.

Non-potable water filters.

Quick Release Manifold for nozzle maintenace.

COMPARE PRODUCT SPECIFICATIONS

Throw Water Usage Genset KW Runtime Fuel Tank Size
DB-45 Surge Fusion 30m 4.9 - 9.8 GPM 30 kW 12 hours 50 gallons
DB-60 Fusion 60m 12.0 - 26.7 GPM 45 kW 48 hours 100 gallons
DB-45 Surge Fusion 60m 17.0 - 71.0 GPM 45 kW 60 hours 100 gallons
DB-60 Surge Fusion 60m 26.0 - 110.0 GPM 75 kW 48 hours 100 gallons
DB-100 Fusion 100m 17.7 - 39.0 GPM 75 kW 32 hours 150 gallons
